Configure keyboard/Mouse control

IR-SIM support reading the keyboard and mouse input to control the robot manually.

Keyboard Control Configuration Parameters

In the keyboard control mode, the behavior of the robot is controlled by the user and the settings in the YAML file will be ignored. Please make sure the dependencies are installed before running the simulation with keyboard. The dependencies can be installed using the following command:

pip install ir-sim[keyboard]

To start with the keyboard control, you can simply to specify the control_mode parameter in the world section as keyboard. The example of the keyboard control is shown below:

import irsim

env = irsim.make()

for i in range(1000):

    env.step()
    env.render(0.05)

    if env.done():
        break

env.end()

world:
  height: 50
  width: 50
  control_mode: 'keyboard'
  obstacle_map: 'cave.png'
  mdownsample: 2

robot:
  - kinematics: {name: 'acker'}
    shape: {name: 'rectangle', length: 4.6, width: 1.6, wheelbase: 3}
    state: [5, 5, 0, 0]
    goal: [40, 40, 0]
    vel_max: [4, 1]
    plot:
      show_trail: True
      traj_color: 'g'
      show_trajectory: True
      show_goal: False

    sensors:
      - type: 'lidar2d'
        range_min: 0
        range_max: 20
        angle_range: 3.14
        number: 100
        alpha: 0.4

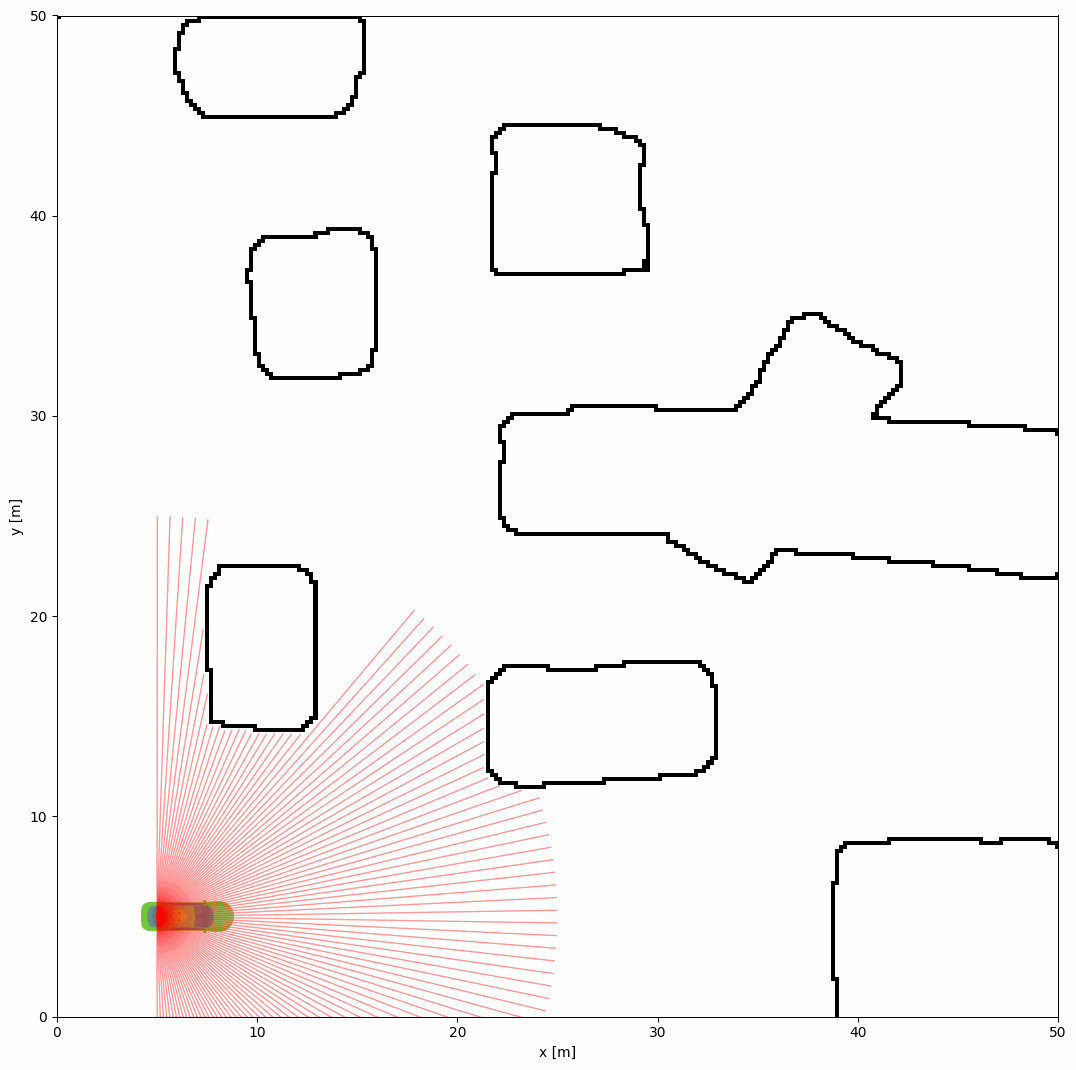

The demonstration controlled by the keyboard is shown below:

Keyboard Control Key Mapping

Key	Function
w	Forward
s	Back Forward
a	Turn Left
d	Turn Right
q	Decrease Linear Velocity
e	Increase Linear Velocity
z	Decrease Angular Velocity
c	Increase Angular Velocity
alt+num	Change Current Control Robot ID
r	Reset the Environment

Mouse Control

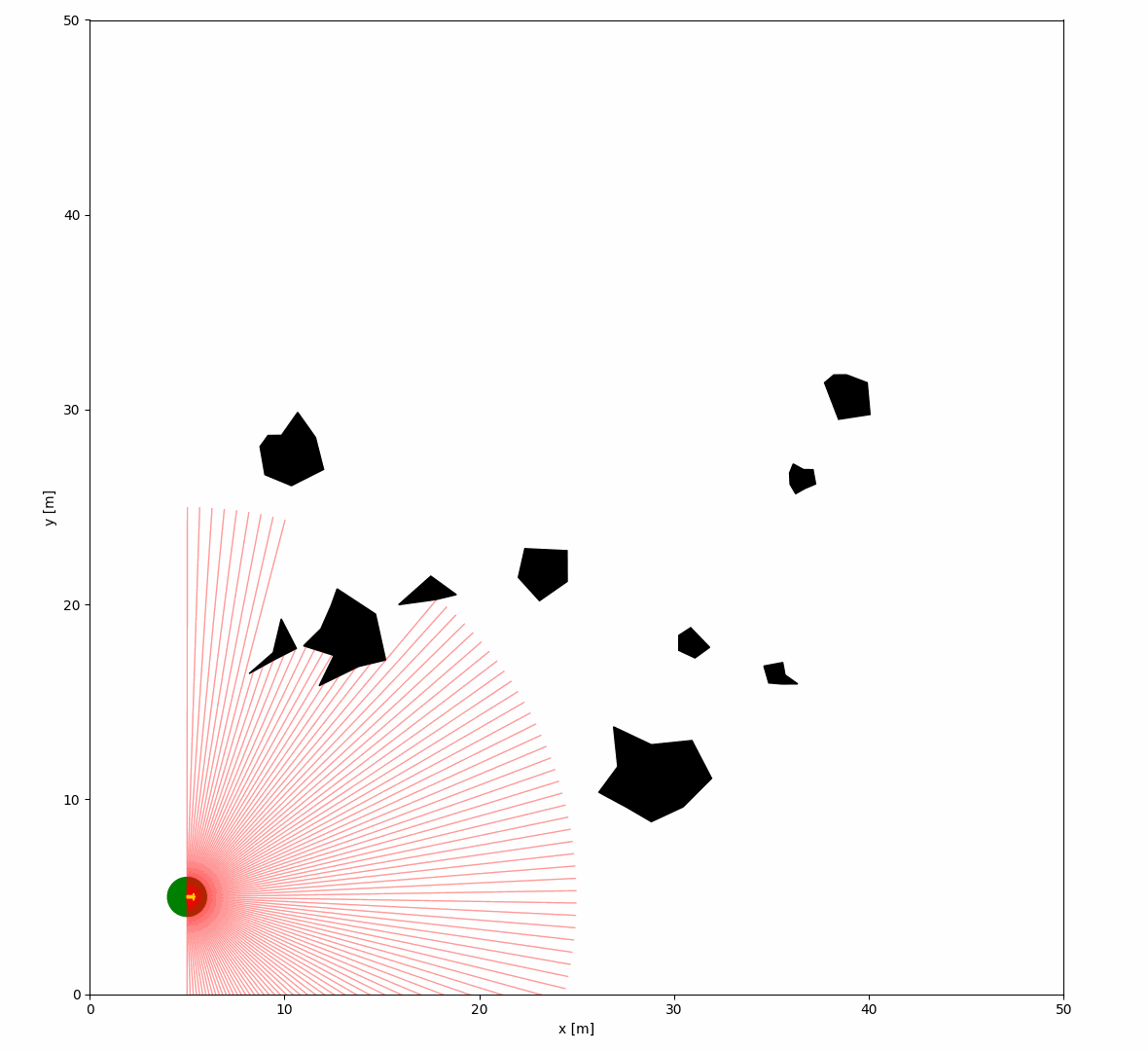

IR-SIM supports the mouse control to zoom in and out the environment and track the mouse position. The mouse control is enabled by default. For example, you can use mouse left click to set the goal of the robot, as shown in the following figure.

Python script:

env = irsim.make(save_ani=False, full=False)

for i in range(10000):
    env.step()
    env.render(0.05, show_goal=False)

    if env.mouse_left_pos is not None:
        env.robot.set_goal(env.mouse_left_pos)

    if env.done():
        break

env.end(3)

YAML file:

world:
  height: 50
  width: 50
  step_time: 0.1
  sample_time: 0.1
  offset: [0, 0]
  collision_mode: 'stop'
  control_mode: 'auto'
  plot:
    saved_figure:
      bbox_inches: null

robot:
  - kinematics: {name: 'diff'}
    shape: {name: 'circle', radius: 1}
    state: [5, 5, 0]
    vel_max: [4, 1]
    behavior: {name: 'dash'}
    plot:
      show_trajectory: True
      traj_color: 'g'
      show_goals: True

    sensors:
      - type: 'lidar2d'
        range_min: 0
        range_max: 20
        angle_range: 3.14
        number: 100
        noise: False
        std: 1
        angle_std: 0.2
        offset: [0, 0, 0]
        alpha: 0.4


obstacle:
  - number: 10
    distribution: {name: 'manual'}
    shape:
      - {name: 'polygon', random_shape: true, center_range: [5, 10, 40, 30], avg_radius_range: [0.5, 2]}

Mouse Control Key Mapping

Mouse Action	Function
Mouse Movement	Track mouse position and update display coordinates
Middle Click	Reset zoom to default view
Scroll Up	Zoom in (centered on mouse position)
Scroll Down	Zoom out (centered on mouse position)

Mouse Position Attributes

Attribute	Type	Description
mouse_left_pos	tuple	Position of left click (x, y)
mouse_right_pos	tuple	Position of right click (x, y)
mouse_pos	tuple	Current mouse position (x, y)
